- 商品名稱：AFFP-260鍍銀高溫屏蔽電纜
- 添加時間：2024-05-19 09:08:26
- 電 話：0550-7039257
郵 箱：1021757830@qq.com
介紹：

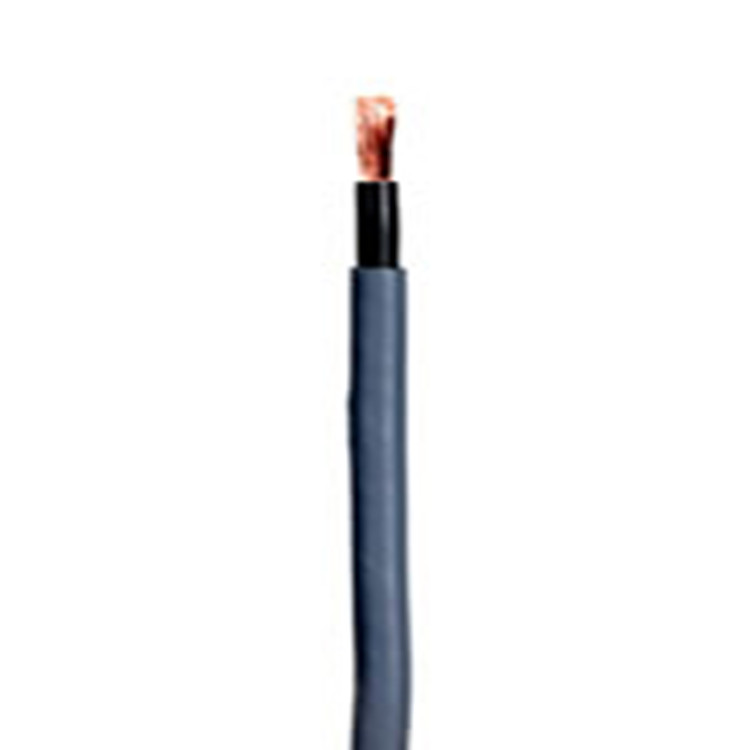

AFFP-260鍍銀高溫屏蔽電纜
一，AFFP-260鍍銀高溫屏蔽電纜腐蝕性能，抗油、強酸、強堿、強氧化劑等，具有優良的電氣J緣性能，耐高電壓，高頻損耗小，不吸潮，J緣電阻大；具有優良的耐燃、耐老化性能，使用壽命長。
AFFP-260鍍銀高溫屏蔽電纜產品技術參數
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
5、護 套：FEP（200℃）或PFA（250℃）鐵氟龍
4、J 緣：FEP（200℃）或PFA（250℃）鐵氟龍
3、導 體：絞合鍍錫或鍍銀銅線
2、工作溫度：-60～+200℃/250℃
1、額定電壓：300/500V
二， 產品基本規格表
芯數×截面 （mm2） | 導體結構 根數/線徑 | J緣 | 護套 | 20℃時導體直流電阻（Ω/km） | ||
| 厚度 | 外徑 | 厚度 | 外徑 | |||
| 2×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.20 | 150 |
| 3×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.30 | 150 |
| 4×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.60 | 150 |
| 5×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 2.80 | 150 |
| 6×0.12 | 7/0.15 | 0.20 | 0.85 | 0.25 | 3.10 | 150 |
| 7×0.12 | 7/0.15 | 0.20 | 0.85 | 0.30 | 3.15 | 150 |
| 2×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.50 | 83.5 |
| 3×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.60 | 83.5 |
| 4×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 2.90 | 83.5 |
| 5×0.2 | 7/0.20 | 0.20 | 1.0 | 0.25 | 3.20 | 83.5 |
| 6×0.2 | 7/0.20 | 0.20 | 1.0 | 0.30 | 3.60 | 83.5 |
| 7×0.2 | 7/0.20 | 0.20 | 1.0 | 0.30 | 3.60 | 83.5 |
| 19×0.2 | 7/0.20 | 0.20 | 1.0 | 0.40 | 5.80 | 83.5 |
| 2×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.10 | 49.5 |
| 3×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.20 | 49.5 |
| 4×0.35 | 19/0.16 | 0.25 | 1.30 | 0.25 | 3.65 | 49.5 |
| 5×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.10 | 49.5 |
| 6×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.50 | 49.5 |
| 7×0.35 | 19/0.16 | 0.25 | 1.30 | 0.30 | 4.50 | 49.5 |
| 19×0.35 | 19/0.16 | 0.25 | 1.30 | 0.40 | 7.30 | 49.5 |
| 2×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.30 | 36.0 |
| 3×0.5 | 19/0.18 | 0.25 | 1.40 | 0.25 | 3.40 | 36.0 |
| 4×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.0 | 36.0 |
| 5×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.40 | 36.0 |
| 6×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.80 | 36.0 |
| 7×0.5 | 19/0.18 | 0.25 | 1.40 | 0.30 | 4.80 | 36.0 |
| 19×0.5 | 19/0.18 | 0.25 | 1.40 | 0.50 | 8.0 | 36.0 |
| 2×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.0 | 22.7 |
| 3×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.0 | 22.7 |
| 4×0.75 | 19/0.23 | 0.25 | 1.70 | 0.30 | 4.70 | 22.7 |
| 5×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.30 | 22.7 |
| 6×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.80 | 22.7 |
| 7×0.75 | 19/0.23 | 0.25 | 1.70 | 0.35 | 5.80 | 22.7 |
| 19×0.75 | 19/0.23 | 0.25 | 1.70 | 0.50 | 9.50 | 22.7 |
| 2×1 | 19/0.26 | 0.25 | 1.80 | 0.30 | 4.20 | 19.0 |
| 3×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 4.30 | 19.0 |
| 4×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 5.10 | 19.0 |
| 5×1 | 19/0.26 | 0.25 | 1.80 | 0.35 | 5.60 | 19.0 |
| 6×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.20 | 19.0 |
| 7×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.20 | 19.0 |
| 8×1 | 19/0.26 | 0.25 | 1.80 | 0.40 | 6.80 | 19.0 |
| 19×1 | 19/0.26 | 0.25 | 1.80 | 0.60 | 10.20 | 19.0 |
| 2×1.5 | 19/0.32 | 0.30 | 2.25 | 0.35 | 5.20 | 11.7 |
| 3×1.5 | 19/0.32 | 0.30 | 2.25 | 0.35 | 5.30 | 11.7 |
| 4×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.20 | 11.7 |
| 5×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 6.80 | 11.7 |
| 6×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 7.50 | 11.7 |
| 7×1.5 | 19/0.32 | 0.30 | 2.25 | 0.40 | 7.60 | 11.7 |
| 19×1.5 | 19/0.32 | 0.30 | 2.25 | 0.60 | 12.5 | 11.7 |
| 2×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 6.40 | 6.86 |
| 3×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 6.40 | 6.86 |
| 4×2.5 | 19/0.41 | 0.40 | 2.80 | 0.40 | 7.60 | 6.86 |
| 5×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 10.30 | 6.86 |
| 6×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 9.40 | 6.86 |
| 7×2.5 | 19/0.41 | 0.40 | 2.80 | 0.50 | 9.40 | 6.86 |
| 19×2.5 | 19/0.41 | 0.40 | 2.80 | 0.70 |
