商品名稱：KVVP22，KVVP2-22鋼帶鎧裝控制電纜
添加時間：2024-06-28 10:06:00
電話：0550-7039257
郵箱：1021757830@qq.com

介紹：

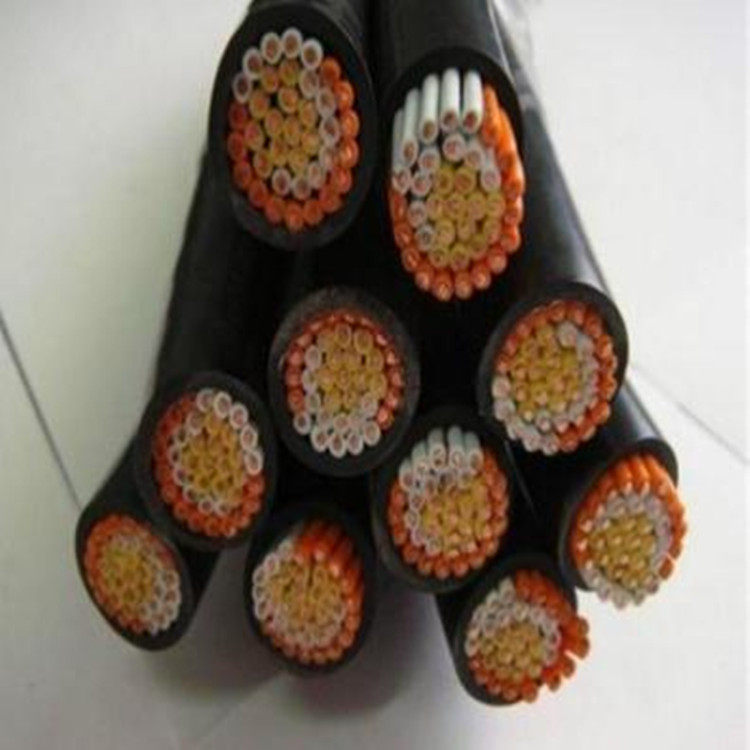

KVVP22，KVVP2-22鋼帶鎧裝控制電纜

KVVP2-22鋼帶鎧裝控制電纜全稱 : 銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽鋼帶鎧裝控制電纜

國家標準 : GB9330

額定電壓 : 450/750V

KVVP2-22銅帶屏蔽鎧裝控制電纜和KVVP22屏蔽控制電纜***一不同的地方是屏蔽不一樣，KVVP22是編織屏蔽，而KVVP2-22是銅帶屏蔽，KVVP2-22具有更好的屏蔽作用，適用于干擾更強的場合。但是KVVP2-22和KVVP22的結構是一樣的。

KVVP22，KVVP2-22鋼帶鎧裝控制電纜規格型號，技術參數表

芯數及導體標稱截面 mm2	導體結構	絕緣厚度		銅帶厚度	鋼帶厚度	護套厚度		電纜近似外徑		電纜近似重量
	NO./фmm	mm		mm	mm	mm		mm		kg/km
	-	450/750V	0.6/1kV	-	-	450/750V	0.6/1kV	450/750V	0.6/1kV	450/750V	0.6/1kV
2×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.0	12.4	189	228
2×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.3	12.7	202	242
2×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	12.2	13.2	236	265
2×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	13.4	14.0	287	306
2×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	14.4	15.8	340	387
2×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	15.4	16.8	404	454
2×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	19.2	19.4	598	607
3×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.3	12.8	207	249
3×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.7	13.1	223	266
3×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	12.6	13.7	264	295
3×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	13.9	14.5	328	348
3×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	14.9	16.4	397	450
3×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	16.0	17.5	483	538
3×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	20.1	20.3	727	736
4×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.9	13.5	230	278
4×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.3	13.8	250	299
4×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	13.4	14.4	300	335
4×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	14.8	15.4	379	400
4×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	15.9	17.5	466	526
4×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	17.2	18.7	574	638
4×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	21.7	21.9	877	886
5×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.5	14.2	255	308
5×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.9	14.6	278	334
5×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	14.2	15.3	338	377
5×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	15.8	16.4	433	455
5×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	17.0	18.7	538	407
5×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.4	20.1	671	743
5×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	23.4	23.6	1033	1044

芯數及導體標稱截面 mm2	導體結構	絕緣厚度		銅帶厚度	鋼帶厚度	護套厚度		電纜近似外徑		電纜近似重量
	NO./фmm	mm		mm	mm	mm		mm		kg/km
	-	450/750V	0.6/1kV	-	-	450/750V	0.6/1kV	450/750V	0.6/1kV	450/750V	0.6/1kV
6×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.2	15.0	278	336
6×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.6	15.4	305	365
6×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.0	16.2	373	415
6×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	16.8	17.4	482	505
6×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.2	20.0	604	679
6×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	19.7	21.5	770	852
6×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	25.2	25.4	1195	1207
7×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.2	15.0	286	346
7×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.6	15.4	316	378
7×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.0	16.2	389	432
7×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	16.8	17.4	508	531
7×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.2	20.0	644	721
7×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	19.7	21.5	827	912
7×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	25.2	25.4	1291	1302
8×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.8	15.7	313	380
8×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	14.3	16.3	347	416
8×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.8	17.1	430	4778
8×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	17.8	18.4	567	592
8×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	19.8	21.3	740	809
8×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	21.4	23.0	939	1012
8×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.9	27.0	27.2	1440	1452
10×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	15.3	17.5	368	448
10×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.0	18.2	410	492
10×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	17.8	19.2	513	569
10×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	20.6	20.8	702	711
10×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	22.5	24.3	896	981
10×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.9	24.5	26.3	1143	1233
10×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	2.0	31.3	31.9	1766	1809
12×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	15.7	17.9	396	482
12×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.3	18.6	445	533
12×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	18.2	19.6	561	621
12×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	21.1	21.3	775	784
12×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	23.0	24.9	1000	1093
12×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	25.2	27.0	1288	1387
14×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.2	18.6	430	523
14×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.9	19.3	485	581
14×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	18.9	20.4	617	681
14×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	22.0	22.2	858	868
14×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	24.0	26.0	1117	1220
14×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	26.3	28.3	1447	1558

芯數及導體標稱截面 mm2	導體結構	絕緣厚度		銅帶厚度	鋼帶厚度	護套厚度		電纜近似外徑		電纜近似重量
	NO./фmm	mm		mm	mm	mm		mm		kg/km
	-	450/750V	0.6/1kV	-	-	450/750V	0.6/1kV	450/750V	0.6/1kV	450/750V	0.6/1kV
16×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.8	19.3	466	567
16×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	17.6	20.1	527	631
16×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	19.7	21.3	675	744
16×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	22.9	23.1	944	954
19×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	17.5	20.1	508	617
19×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	18.3	20.9	578	691
19×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	1.8	21.0	22.2	764	821
19×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	24.0	24.2	1051	1062
24×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	19.7	22.7	609	740
24×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.8	21.0	23.6	715	832
24×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	1.8	23.7	25.1	925	994
24×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	27.3	27.5	1284	1296
27×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.8	20.4	23.1	666	787
27×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.8	21.4	24.1	764	889
27×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	1.8	24.2	25.6	994	1067
27×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	27.9	28.1	1390	1402
30×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.8	21.0	23.7	711	841
30×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.8	22.0	24.8	818	953
30×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	1.8	24.9	26.4	1070	1148
30×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.9	28.7	29.1	1504	1530
37×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.8	22.2	25.2	815	965
37×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.9	23.4	26.4	943	1100
37×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	1.8	26.5	28.1	1245	1336
37×2.5	1/1.78	0.8	0.8	1×0.05	2×0.5	2.0	2.0	31.3	32.5	2121	2121
44×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.8	24.4	27.8	939	1114
44×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.9	25.7	29.3	1090	1285
44×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.7	2.0	29.3	31.5	1446	1579
44×2.5	1/1.78	0.8	0.8	1×0.05	2×0.5	2.0	2.1	34.7	36.1	2457	2473
48×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.8	24.7	28.2	989	1174
48×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.9	26.0	29.7	1152	1358
48×1.5	1/1.38	0.7	0.8	1×0.05	2×0.5	1.7	2.0	29.7	33.1	1833	1992
48×2.5	1/1.78	0.8	0.8	1×0.05	2×0.5	2.0	2.1	35.2	36.6	2601	2617
52×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.9	25.3	29.1	1045	1254
52×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	1.9	26.7	30.4	1220	1438
52×1.5	1/1.38	0.7	0.8	1×0.05	2×0.5	2.0	2.0	31.0	33.9	1980	2103
52×2.5	1/1.78	0.8	0.8	1×0.05	2×0.5	2.2	2.2	36.5	77.7	2790	2799
61×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.7	1.9	26.6	30.6	1170	1405
61×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.7	2.0	28.0	32.2	1373	1632
61×1.5	1/1.38	0.7	0.8	1×0.05	2×0.5	2.0	2.1	32.7	35.9	2214	2370
61×2.5	1/1.78	0.8	0.8	1×0.05	2×0.5	2.2	2.2	38.5	39.7	3143	3143
