- 商品名稱：YR/YRF電動葫蘆軟電纜
- 添加時間：2024-11-13 16:04:01
- 電 話：0550-7039257
郵 箱：1021757830@qq.com
介紹：

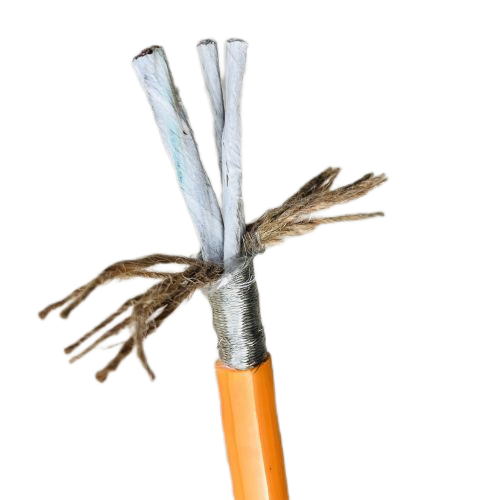

YR/YRF電動葫蘆軟電纜
| 型號 | 產品名稱 | 芯數 | 標稱截面 mm2 |
| YR | 天然丁絕緣及護套多芯移動型電動葫蘆軟電纜 | 1～20 | 1.0；1.5；2.5 |
| YRF | 天然丁絕緣氯丁護套多芯移動型電動葫蘆軟電纜 | 1～20 | 1.0；1.5；2.5 |
電動葫蘆電纜數據及重量：
| 標稱截面 (mm2) | 導體線芯結 構根數/單線 直徑(mm) | 芯數 | 額定電壓 | 導線線芯直流 電阻(Ω/km)≤ | ||||||
| 300/300V | 300/500V | |||||||||
| 電纜***大外徑(mm) | 電纜計算重量(kg/km) | 電纜***小外徑(mm) | 電纜計算重量(kg/km) | 不銹鋼 | 鍍錫 | |||||
| YR/YRF | YR | YRF | YR/YRF | YR | YRF | |||||
| 1.0 | 32/0.20 | 1 | 6.80 | 42.17 | 44.10 | 7.20 | 44.79 | 46.81 | 19.5 | 20.0 |
| 2 | 9.50 | 85.28 | 88.72 | 10.4 | 92.97 | 96.60 | 20.5 | 21.0 | ||
| 3 | 10.0 | 102.51 | 106.13 | 10.9 | 109.47 | 113.30 | 20.5 | 21.0 | ||
| 4 | 10.7 | 120.47 | 124.42 | 11.8 | 129.12 | 133.30 | 20.5 | 21.0 | ||
| 5 | 11.5 | 142.27 | 146.57 | 12.7 | 152.67 | 157.22 | 20.5 | 21.0 | ||
| 6 | 12.3 | 164.34 | 169.0 | 13.7 | 177.99 | 182.94 | 20.5 | 21.0 | ||
| 7 | 13.2 | 187.51 | 192.54 | 15.8 | 232.81 | 240.24 | 20.5 | 21.0 | ||
| 8 | 14.1 | 213.57 | 219.09 | 16.7 | 263.22 | 271.36 | 20.5 | 21.0 | ||
| 9 | 16.0 | 272.12 | 280.54 | 17.8 | 296.12 | 305.06 | 20.5 | 21.0 | ||
| 10 | 16.9 | 298.66 | 307.18 | 18.8 | 324.13 | 333.54 | 20.5 | 21.0 | ||
| 12 | 16.7 | 311.21 | 319.63 | 18.5 | 348.36 | 357.30 | 20.5 | 21.0 | ||
| 14 | 17.4 | 346.43 | 355.28 | 19.3 | 372.97 | 387.36 | 20.5 | 21.0 | ||
| 16 | 18.0 | 386.08 | 395.39 | 20.3 | 415.19 | 425.09 | 20.5 | 21.0 | ||
| 18 | 19.0 | 424.65 | 434.46 | 21.2 | 458.89 | 469.32 | 20.5 | 21.0 | ||
| 20 | 19.9 | 465.13 | 475.42 | 22.2 | 503.66 | 514.64 | 20.5 | 21.0 | ||
| 1.5 | 48/0.20 | 1 | 7.30 | 49.65 | 51.71 | 7.50 | 52.42 | 54.58 | 13.3 | 13.7 |
| 2 | 10.2 | 102.92 | 106.65 | 11.1 | 18.65 | 112.55 | 14.0 | 14.4 | ||
| 3 | 10.7 | 123.93 | 127.86 | 11.6 | 134.73 | 138.86 | 14.0 | 14.4 | ||
| 4 | 11.5 | 148.11 | 152.38 | 12.5 | 157.33 | 161.84 | 14.0 | 14.4 | ||
| 5 | 12.4 | 176.14 | 180.8 | 13.6 | 188.37 | 193.29 | 14.0 | 14.4 | ||
| 6 | 13.3 | 205.64 | 210.71 | 15.7 | 248.96 | 256.42 | 14.0 | 14.4 | ||
| 7 | 14.2 | 235.11 | 240.60 | 16.8 | 283.46 | 294.50 | 14.0 | 14.4 | ||
| 8 | 16.3 | 299.92 | 308.27 | 17.9 | 319.70 | 328.52 | 14.0 | 14.4 | ||
| 9 | 17.3 | 337.72 | 346.90 | 19.0 | 363.03 | 372.73 | 14.0 | 14.4 | ||
| 10 | 18.2 | 370.26 | 379.91 | 20.1 | 399.11 | 409.32 | 14.0 | 14.4 | ||
| 12 | 18.0 | 390.59 | 399.77 | 19.8 | 419.31 | 429.01 | 14.0 | 14.4 | ||
| 14 | 18.0 | 437.68 | 447.33 | 20.7 | 466.45 | 476.65 | 14.0 | 14.4 | ||
| 16 | 19.7 | 488.82 | 498.99 | 21.8 | 522.18 | 532.94 | 14.0 | 14.4 | ||
| 18 | 20.6 | 541.52 | 552.23 | 22.8 | 578.38 | 589.72 | 14.0 | 14.4 | ||
| 20 | 21.6 | 599.53 | 611.18 | 23.9 | 635.67 | 647.60 | 14.0 | 14.4 | ||
